Spartherm Linear Front 39x66 RLA

Spartherm Stove - Linear Front 39x66 RLA

Built-in fire for maximum convenience and beautiful fire view

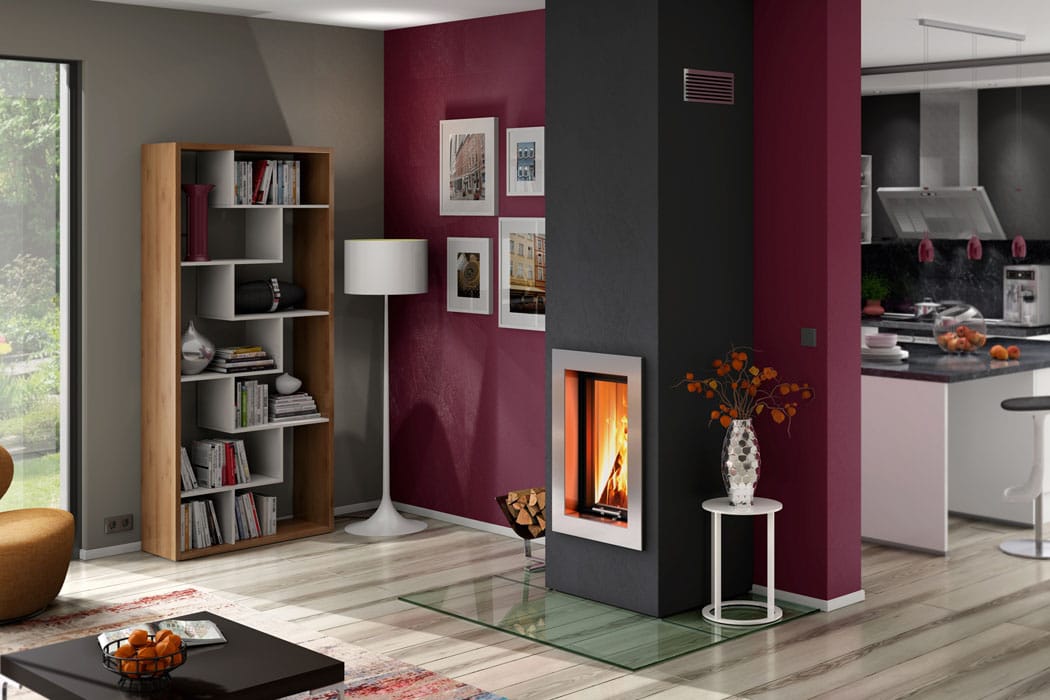

The Linear Front 39x66 RLA is an exceptional portrait-shaped wood fire that can be inserted into a standard-sized chimney with minimal building work or installed into a false chimneybreast.  It has the famous Spartherm elevating door system with fixed handle and provides comfortable heating at a high level of energy efficiency.

Spartherm Stove - Linear Front 39x66 RLA Specifications

Brand Spartherm
Series Linear
Category Wood fires
Energy efficiency class A+
Model Built-in
Fire view Front
Shape Vertical
Fuel Wood
Combustion system Combustion air from living area
Door type Elevating door with fixed handle
Control Manual control
Colours Black
Material Steel
Interior White chamotte, Black chamotte
Output net min.  (kW) 4.6
Output net max.  (kW) 8.6
Efficiency (%) 85.0
Consumption wood max (kg/h) 2.5
NOx emission (mg/Nm3-13% O2) 200
Built-in depth (mm) 558
Weight (kg) 200
Flue rear (mm) 180
External air connection Base
Convection connection
230V necessary
Approvals EN13229
