Spartherm Linear Insert 81x54 RLA

Spartherm Stove - Linear Insert 81x54 RLA

High capacity wood fire insert with flexible installation.

Powerful wood fire insert with lovely flame picture

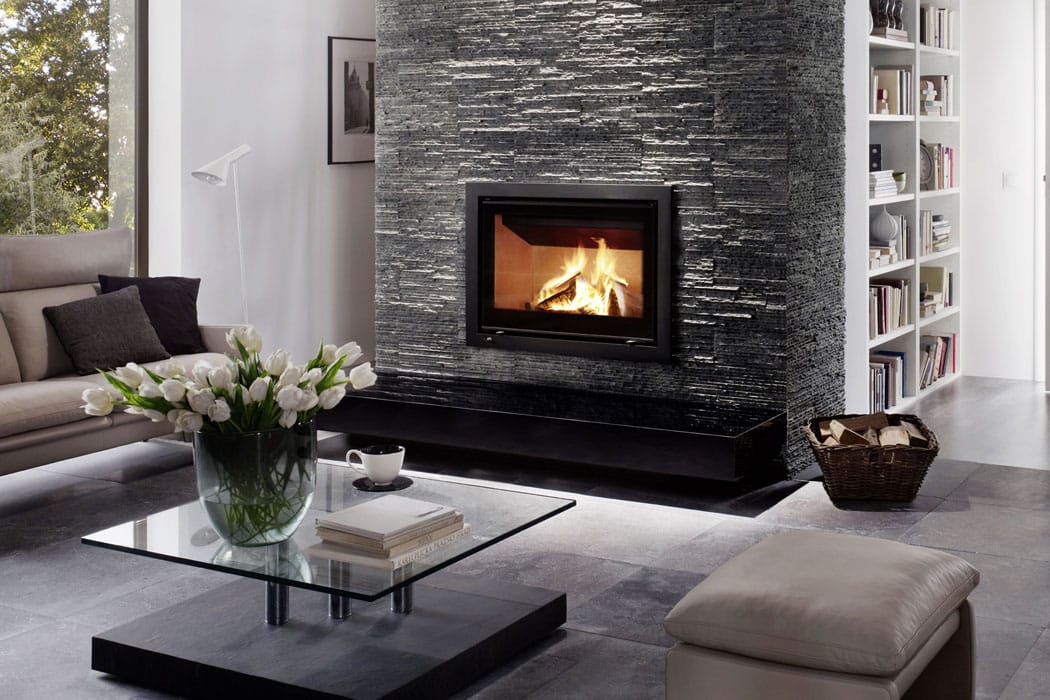

The Linear Insert 81x54 RLA is an impressively wide wood fire insert with a maximum 13.7 kW heat output.  This insert is suitable for installation in an existing chimney or false chimneybreast, so that you can enjoy a stunning wood burning fire with high efficiency.  It is available with a side opening door and white chamotte interior; there is also the optional of an external air kit for even greater efficiency.

Spartherm Stove - Linear Insert 81x54 RLA Specifications

Series Linear inzet
Category Wood fires
Energy efficiency class A
Model Insert
Fire view Front
Shape Square
Fuel Wood
Combustion system Combustion air from living area
Door type Hinged door
Control Manual control
Colours Black
Material Steel
Interior White chamotte
Output net min.  (kW) 7.4
Output net max.  (kW) 13.7
Efficiency (%) 79.4
Consumption wood max (kg/h) 4.3
NOx emission (mg/Nm3-13% O2) 200
Built-in depth (mm) 544
Weight (kg) 135
Flue Ø (mm) 200
External air connection Rear, Base
Convection connection
230V necessary
Approvals EN13229
