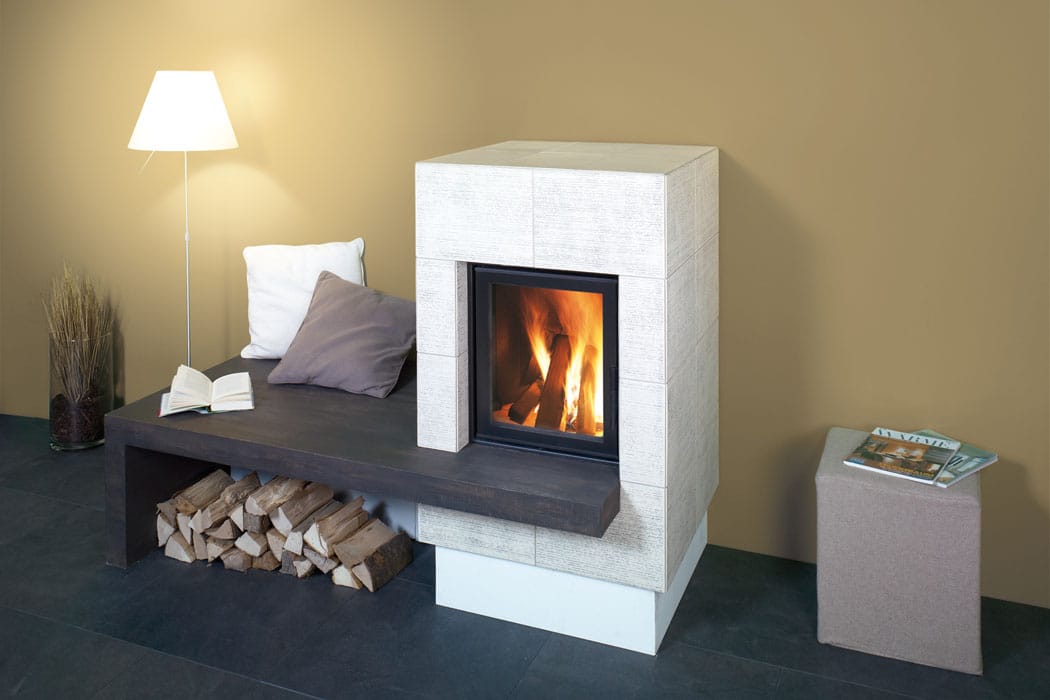

Spartherm Mini Z1 H2O

Spartherm Stove Mini Z1 H2O

Compact water heating stove

Mini Z1 H2O is part of a series of compact wood stoves with central heating capability that can be built into room features or false chimneys.  They combine beautiful flames and comfortable heating with superior efficiency and energy saving.  The Z1 model is suitable for smaller living rooms and has an energy efficiency of 86%.

Spartherm Stove Mini Z1 H2O Specifications

Brand Spartherm
Series GreenDesign
Category H2O stoves
Energy efficiency class A+
Model Built-in
Fire view Front
Shape Vertical
Fuel Wood
Combustion system Combustion air from living area
Door type Hinged door
Control Manual control, Smartphone/tablet S-Thermatik NEO
Colours Black
Material Steel
Interior White chamotte, Black chamotte
Output net min.  (kW) 4.9
Output net max.  (kW) 9.1
Output net water (kW) 5.5
Efficiency (%) 85.9
Consumption wood max (kg/h) 1.7
NOx emission (mg/Nm3-13% O2) 200
Built-in depth (mm) 597
Weight (kg) 250
Flue rear (mm) 180
External air connection Rear
Convection connection
230V necessary
Approvals EN13229
